CXV/DATA − 0,6/1 KV & CXV/DSTA − 0,6/1 KV

Phóng to ảnh

CXV

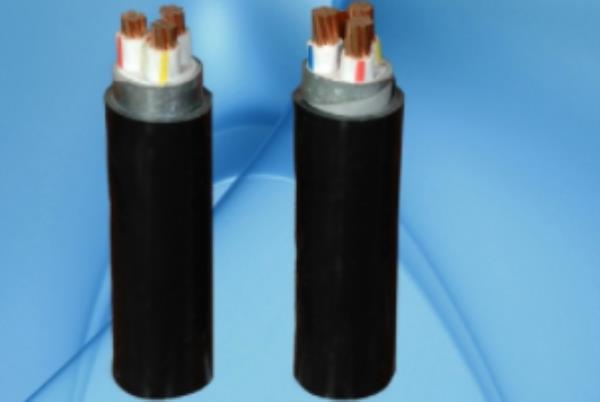

CXV/DATA − 0,6/1 KV & CXV/DSTA − 0,6/1 KV

Cáp CXV/DATA, CXV/DSTA dùng cho hệ thống truyền tải và phân phối điện ngầm, cấp điện áp 0,6/1 kV, lắp đặt cố định.

Liên hệ

Còn hàng

Thêm vào giỏ

Diễn giải
Sản phầm tương tự

ĐẶC TÍNH KỸ THUẬT

Ruột dẫn - Conductor				Chiều dày cách điện danh nghĩa Nominal thickness of insulation	Chiều dày băng nhôm danh nghĩa Nominal thickness of aluminum tape	Chiều dày vỏ danh nghĩa Nominal thickness of sheath	*Đường kính tổng gần đúng⁽⁾** Approx. overall diameter	*Khối lượng cáp gần đúng⁽⁾** Approx. mass
Tiết diện danh nghĩa Nominal area	Kết cấu Structure	Đường kính ruột dẫn *gần đúng⁽⁾** Approx. conductor diameter	Điện trở DC tối đa ở 20 ⁰C Max. DC resistance at 20 ⁰C			Chiều dày vỏ danh nghĩa Nominal thickness of sheath	*Đường kính tổng gần đúng⁽⁾** Approx. overall diameter	*Khối lượng cáp gần đúng⁽⁾** Approx. mass
mm²	N⁰/mm	mm	Ω/km	mm	mm	mm	mm	kg/km
2,5	7/0,67	2,01	7,41	0,7	0,5	1,4	10,2	154
4	7/0,85	2,55	4,61	0,7	0,5	1,4	10,8	179
6	7/1,04	3,12	3,08	0,7	0,5	1,4	11,3	209
10	CC	3,75	1,83	0,7	0,5	1,4	11,5	245
16	CC	4,65	1,15	0,7	0,5	1,4	12,4	311
25	CC	5,8	0,727	0,9	0,5	1,4	13,9	425
35	CC	6,85	0,524	0,9	0,5	1,4	15,0	528
50	CC	8,0	0,387	1,0	0,5	1,4	16,3	667
70	CC	9,7	0,268	1,1	0,5	1,5	18,4	908
95	CC	11,3	0,193	1,1	0,5	1,6	20,2	1166
120	CC	12,7	0,153	1,2	0,5	1,6	21,8	1419
150	CC	14,13	0,124	1,4	0,5	1,7	23,8	1723
185	CC	15,7	0,0991	1,6	0,5	1,7	25,8	2085
240	CC	18,03	0,0754	1,7	0,5	1,8	28,5	2666
300	CC	20,4	0,0601	1,8	0,5	1,9	31,2	3333
400	CC	23,2	0,0470	2,0	0,5	2,0	35,0	4258
500	CC	26,2	0,0366	2,2	0,5	2,1	38,6	5334
630	CC	30,2	0,0283	2,4	0,5	2,3	43,3	6959
