CVV/DATA − 0,6/1 KV & CVV/DSTA − 0,6/1 KV

Phóng to ảnh

CVV

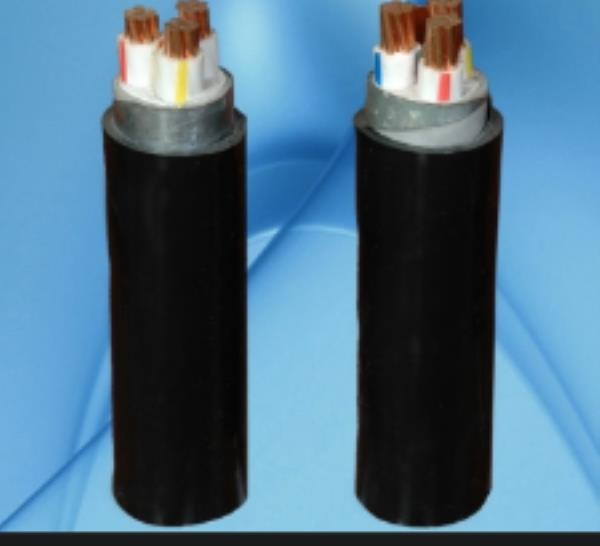

CVV/DATA − 0,6/1 KV & CVV/DSTA − 0,6/1 KV

Cáp CVV/DATA, CVV/DSTA dùng cho hệ thống truyền tải và phân phối điện ngầm, cấp điện áp 0,6/1 kV, lắp đặt cố định.

Liên hệ

Còn hàng

Thêm vào giỏ

Diễn giải
Sản phầm tương tự

ĐẶC TÍNH KỸ THUẬT

Ruột dẫn - Conductor				Chiều dày cách điện danh nghĩa Nominal thickness of insulation	Chiều dày băng nhôm danh nghĩa Nominal thickness of aluminum tape	Chiều dày vỏ danh nghĩa Nominal thickness of sheath	*Đường kính tổng gần đúng⁽⁾** Approx. overall diameter	*Khối lượng cáp gần đúng⁽⁾** Approx. mass
Tiết diện danh nghĩa Nominal area	Kết cấu Structure	Đường kính ruột dẫn *gần đúng⁽⁾** Approx. conductor diameter	Điện trở DC tối đa ở 20 ⁰C Max. DC resistance at 20 ⁰C			Chiều dày vỏ danh nghĩa Nominal thickness of sheath	*Đường kính tổng gần đúng⁽⁾** Approx. overall diameter	*Khối lượng cáp gần đúng⁽⁾** Approx. mass
mm²	N⁰/mm	mm	Ω/km	mm	mm	mm	mm	kg/km
2,5	7/0,67	2,01	7,41	0,8	0,5	1,4	10,4	163
4	7/0,85	2,55	4,61	1,0	0,5	1,4	11,4	201
6	7/1,04 Hoặc/or CC	3,12	3,08	1,0	0,5	1,4	11,9	233
10	CC	3,75	1,83	1,0	0,5	1,4	12,1	269
16	CC	4,65	1,15	1,0	0,5	1,4	13,0	337
25	CC	5,8	0,727	1,2	0,5	1,4	14,5	458
35	CC	6,85	0,524	1,2	0,5	1,4	15,6	564
50	CC	8,0	0,387	1,4	0,5	1,5	17,3	724
70	CC	9,7	0,268	1,4	0,5	1,5	19,0	959
95	CC	11,3	0,193	1,6	0,5	1,6	21,2	1244
120	CC	12,7	0,153	1,6	0,5	1,6	22,6	1495
150	CC	14,13	0,124	1,8	0,5	1,7	24,6	1812
185	CC	15,7	0,0991	2,0	0,5	1,8	26,7	2200
240	CC	18,03	0,0754	2,2	0,5	1,9	29,7	2814
300	CC	20,4	0,0601	2,4	0,5	1,9	32,4	3503
400	CC	23,2	0,0470	2,6	0,5	2,1	36,4	4476
500	CC	26,2	0,0366	2,8	0,5	2,2	40,0	5587
630	CC	30,2	0,0283	2,8	0,5	2,3	44,1	7200
