CXE ­− 0,6/1 KV

Phóng to ảnh

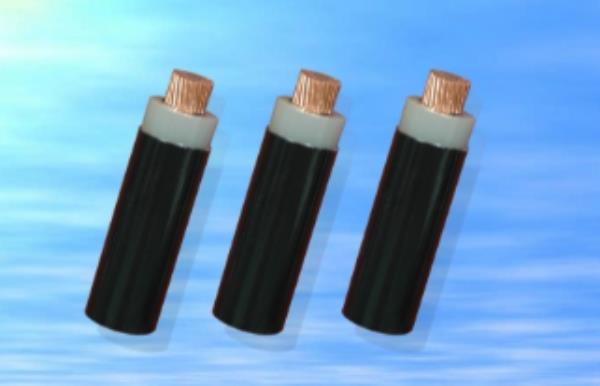

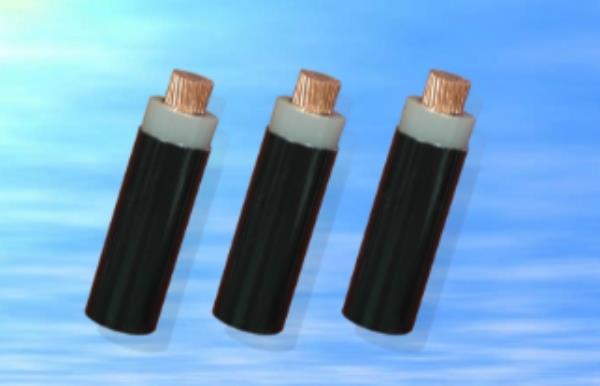

CXE

CXE − 0,6/1 KV

Cáp CXE dùng cho hệ thống truyền tải
và phân phối điện, cấp điện áp 0,6/1 kV, lắp đặt cố định.

Liên hệ

Còn hàng

Thêm vào giỏ

Diễn giải
Sản phầm tương tự

ĐẶC TÍNH KỸ THUẬT

Ruột dẫn - Conductor				Chiều dày cách điện danh định	Chiều dày vỏ danh định Nominal thickness of sheath				Đường kính tổng gần đúng () Approx. overall diameter*				Khối lượng cáp gần đúng () Approx. mass*
Tiết diện danh định	Kết cấu	Đường kính ruột dẫn gần đúng (*)	Điện trở DC tối đa ở 20⁰C	Chiều dày cách điện danh định	Chiều dày vỏ danh định Nominal thickness of sheath				Đường kính tổng gần đúng () Approx. overall diameter*				Khối lượng cáp gần đúng () Approx. mass*
Nominal area	Structure	Approx. conductor diameter	Max. DC resistance at 20⁰C	Nominal thickness of insulation	1 Lõi	2 Lõi	3 Lõi	4 Lõi	1 Lõi	2 Lõi	3 Lõi	4 Lõi	1 Lõi	2 Lõi	3 Lõi	4 Lõi
Nominal area	Structure	Approx. conductor diameter	Max. DC resistance at 20⁰C	Nominal thickness of insulation	core	core	core	core	core	core	core	core	core	core	core	core
mm²	N⁰ /mm	mm	Ω/km	mm	mm				mm				kg/km
1,5	7/0,52	1,56	12,10	0,7	1,4	1,8	1,8	1,8	5,8	10,7	11,2	12,0	37	129	146	173
2,5	7/0,67	2,01	7,41	0,7	1,4	1,8	1,8	1,8	6,2	11,6	12,2	13,1	48	164	191	228
4	7/0,85	2,55	4,61	0,7	1,4	1,8	1,8	1,8	6,8	12,7	13,3	14,4	66	214	254	308
6	7/1,04	3,12	3,08	0,7	1,4	1,8	1,8	1,8	7,3	13,8	14,6	15,7	87	276	332	408
10	7/1,35	4,05	1,83	0,7	1,4	1,8	1,8	1,8	8,3	15,7	16,6	18,0	130	395	487	605
16	CC	4,75	1,15	0,7	1,4	1,8	1,8	1,8	9,0	16,3	17,3	18,9	185	416	568	735
25	CC	6,0	0,727	0,9	1,4	1,8	1,8	1,8	10,6	19,6	20,8	22,9	281	631	871	1132
35	CC	7,1	0,524	0,9	1,4	1,8	1,8	1,8	11,7	21,8	23,2	25,5	375	838	1165	1520
50	CC	8,3	0,387	1,0	1,4	1,8	1,8	1,9	13,1	24,6	26,2	29,1	497	1107	1548	2033
70	CC	9,9	0,268	1,1	1,4	1,8	1,9	2,0	14,9	28,2	30,3	33,7	697	1544	2181	2869
95	CC	11,7	0,193	1,1	1,5	2,0	2,0	2,1	16,9	32,2	34,4	38,2	951	2103	2967	3908
120	CC	13,1	0,153	1,2	1,5	2,1	2,1	2,3	18,5	35,6	38,1	42,5	1187	2628	3716	4909
150	CC	14,7	0,124	1,4	1,6	2,2	2,3	2,4	20,7	39,8	42,8	48,0	1465	3246	4603	6071
185	CC	16,4	0,0991	1,6	1,6	2,3	2,4	2,6	22,8	44,2	47,9	53,4	1819	4037	5738	7576
240	CC	18,6	0,0754	1,7	1,7	2,5	2,6	2,8	25,4	49,8	53,5	59,6	2368	5250	7463	9857
300	CC	21,1	0,0601	1,8	1,8	2,7	2,8	3,0	28,3	55,6	69,8	66,6	2956	6558	9325	12315
400	CC	24,2	0,0470	2,0	1,9	2,9	3,1	3,3	32,0	63,0	68,3	76,0	3764	8362	11920	15735
500	CC	27,0	0,0366	2,2	2,0	-	-	-	35,4	-	-	-	4805	-	-	-
630	CC	30,8	0,0283	2,4	2,2	-	-	-	40,0	-	-	-	6195	-	-	-
