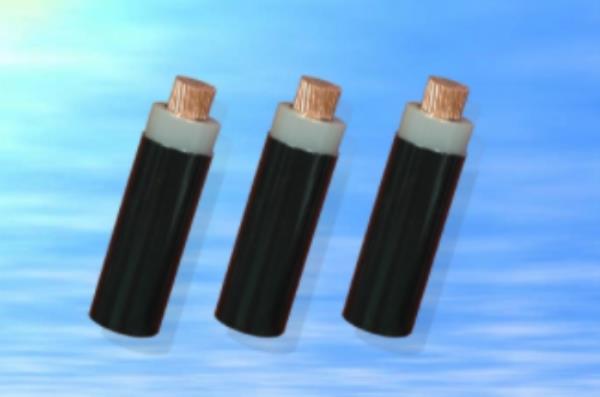

CXV ­− 0,6/1 kV

Phóng to ảnh

CXV

CXV − 0,6/1 kV

Cáp CXV dùng cho hệ thống truyền tải và phân phối điện, cấp điện áp 0,6/1 kV, lắp đặt cố định.

Liên hệ

Còn hàng

Thêm vào giỏ

Diễn giải
Sản phầm tương tự

ĐẶC TÍNH KỸ THUẬT

Ruột dẫn Conductor				Chiều dày cách điện danh nghĩa Nominal thickness of insulation	Chiều dày vỏ danh nghĩa Nominal thickness of sheath				*Đường kính tổng gần đúng⁽⁾** Approx. overall diameter				*Khối lượng cáp gần đúng⁽⁾** Approx. mass
Tiết diện danh nghĩa Nominal area	Kết cấu Structure	*Đường kính ruột dẫn gần đúng⁽⁾** Approx. conductor diameter	Điện trở DC tối đa ở 20 ⁰C Max. DC resistance at 20 ⁰C		1 Lõi Core	2 Lõi Core	3 Lõi Core	4 Lõi Core	1 Lõi Core	2 Lõi Core	3 Lõi Core	4 Lõi Core	1 Lõi Core	2 Lõi Core	3 Lõi Core	4 Lõi Core
mm²	N⁰/mm	mm	Ω/km	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km
1,5	7/0,52	1,56	12,10	0,7	1,4	1,8	1,8	1,8	5,8	10,7	11,2	12,0	46	155	174	202
2,5	7/0,67	2,01	7,41	0,7	1,4	1,8	1,8	1,8	6,2	11,6	12,2	13,1	59	193	221	261
4	7/0,85	2,55	4,61	0,7	1,4	1,8	1,8	1,8	6,8	12,7	13,3	14,4	78	246	287	344
6	7/1,04	3,12	3,08	0,7	1,4	1,8	1,8	1,8	7,3	13,8	14,6	15,7	101	310	369	448
10	7/CC	3,75	1,83	0,7	1,4	1,8	1,8	1,8	7,5	13,7	14,6	15,9	132	306	406	518
16	7/CC	4,65	1,15	0,7	1,4	1,8	1,8	1,8	8,4	15,5	16,5	18,1	188	427	577	743
25	7/CC	5,8	0,727	0,9	1,4	1,8	1,8	1,8	9,9	18,6	19,9	21,8	283	640	876	1133
35	7/CC	6,85	0,524	0,9	1,4	1,8	1,8	1,8	11,0	20,7	22,1	24,4	373	837	1156	1502
50	19/CC	8,0	0,387	1,0	1,4	1,8	1,8	1,9	12,3	23,4	25,0	27,8	495	1107	1538	2016
70	19/CC	9,7	0,268	1,1	1,4	1,8	1,9	2,0	14,2	27,2	29,3	32,6	706	1569	2208	2899
95	19/CC	11,3	0,193	1,1	1,5	2,0	2,0	2,1	16,0	30,8	33,0	36,7	941	2090	2935	3858
120	19/CC	12,7	0,153	1,2	1,5	2,1	2,1	2,3	17,6	34,2	36,6	40,9	1174	2614	3677	4854
150	19/CC	14,13	0,124	1,4	1,6	2,2	2,3	2,4	19,6	38,0	40,9	45,9	1453	3227	4562	6007
185	19/CC	15,7	0,0991	1,6	1,6	2,3	2,4	2,6	21,6	42,1	45,7	51,0	1790	3986	5649	7450
240	37/CC	18,03	0,0754	1,7	1,7	2,5	2,6	2,8	24,3	48,0	51,6	57,5	2338	5207	7377	9732
300	61/CC	20,4	0,0601	1,8	1,8	2,7	2,8	3,0	27,0	53,5	57,5	64,1	2970	6604	9369	12360
400	61/CC	23,2	0,0470	2,0	1,9	2,9	3,1	3,3	30,4	60,2	64,9	72,8	3820	8486	12079	15945
500	61/CC	26,2	0,0366	2,2	2,0	-	-	-	34,0	-	-	-	4847	-	-	-
630	61/CC	30,2	0,0283	2,4	2,2	-	-	-	38,8	-	-	-	6409	-	-	-
