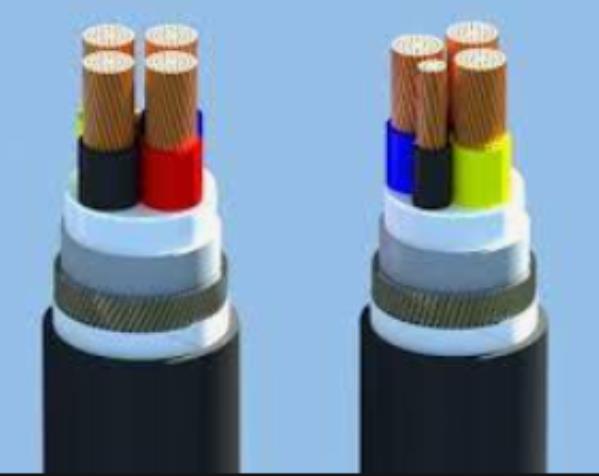

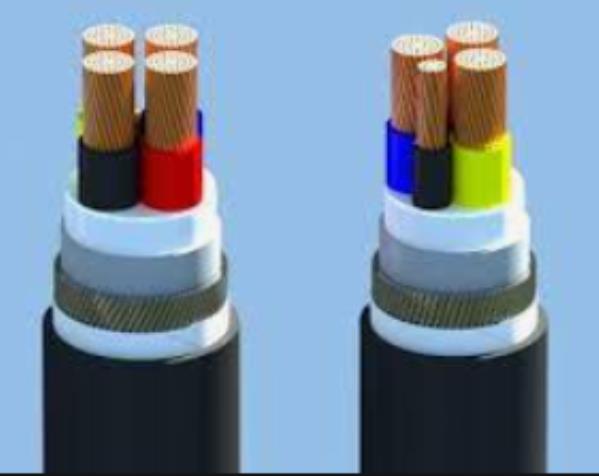

CVV ­− 0,6/1 kV

Phóng to ảnh

CVV

CVV − 0,6/1 kV

Cáp CVV dùng cho hệ thống truyền tải và phân phối điện, cấp điện áp 0,6/1 kV, lắp đặt cố định.

Liên hệ

Còn hàng

Thêm vào giỏ

Diễn giải
Sản phầm tương tự

ĐẶC TÍNH KỸ THUẬT

Ruột dẫn Conductor				Chiều dày cách điện danh nghĩa Nominal thickness of insulation	Chiều dày vỏ danh nghĩa Nominal thickness of sheath				*Đường kính tổng gần đúng⁽⁾** Approx. overall diameter				*Khối lượng cáp gần đúng⁽⁾** Approx. mass
Tiết diện danh nghĩa Nominal area	Kết cấu Structure	*Đường kính ruột dẫn gần đúng⁽⁾** Approx. conductor diameter	Điện trở DC tối đa ở 20 ⁰C Max. DC resistance at 20 ⁰C		1 Lõi Core	2 Lõi Core	3 Lõi Core	4 Lõi Core	1 Lõi Core	2 Lõi Core	3 Lõi Core	4 Lõi Core	1 Lõi Core	2 Lõi Core	3 Lõi Core	4 Lõi Core
mm²	N⁰/mm	mm	Ω/km	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km
1,5	7/0,52	1,56	12,1	0,8	1,4	1,8	1,8	1,8	6,0	11,1	11,6	12,4	52	172	194	228
2,5	7/0,67	2,01	7,41	0,8	1,4	1,8	1,8	1,8	6,4	12,0	12,6	13,5	66	212	244	290
4	7/0,85	2,55	4,61	1,0	1,4	1,8	1,8	1,8	7,4	13,9	14,3	15,8	92	294	322	414
6	7/1,04	3,12	3,08	1,0	1,4	1,8	1,8	1,8	7,9	15,0	15,9	17,2	117	364	433	526
10	CC	3,75	1,83	1,0	1,4	1,8	1,8	1,8	8,1	14,9	15,9	17,4	149	346	459	586
16	CC	4,65	1,15	1,0	1,4	1,8	1,8	1,8	9,0	16,7	17,8	19,5	207	474	639	822
25	CC	5,8	0,727	1,2	1,4	1,8	1,8	1,8	10,5	19,8	21,2	23,3	308	701	958	1240
35	CC	6,85	0,524	1,2	1,4	1,8	1,8	1,8	11,6	21,9	23,4	25,8	402	906	1249	1623
50	CC	8,0	0,387	1,4	1,4	1,8	1,8	1,9	13,1	25,0	26,8	29,8	536	1204	1670	2189
70	CC	9,7	0,268	1,4	1,4	1,9	2,0	2,1	14,8	28,6	30,8	34,2	750	1681	2359	3095
95	CC	11,3	0,193	1,6	1,5	2,0	2,1	2,2	17,0	32,8	35,3	39,3	1006	2247	3161	4152
120	CC	12,7	0,153	1,6	1,5	2,1	2,2	2,3	18,4	35,8	38,5	43,0	1240	2770	3908	5154
150	CC	14,13	0,124	1,8	1,6	2,2	2,3	2,5	20,4	39,6	42,6	48,0	1533	3412	4835	6366
185	CC	15,7	0,0991	2,0	1,7	2,4	2,5	2,7	22,6	43,9	47,7	53,1	1894	4222	5974	7874
240	CC	18,03	0,0754	2,2	1,8	2,6	2,7	2,9	25,5	50,1	53,9	60,1	2471	5516	7799	10282
300	CC	20,4	0,0601	2,4	1,9	2,7	2,9	3,1	28,4	55,9	60,3	67,6	3137	6972	9902	13068
400	CC	23,2	0,0470	2,6	2,0	3,0	3,1	3,4	31,8	62,8	67,9	75,8	4019	8948	12698	16774
500	CC	26,2	0,0366	2,8	2,1	-	-	-	35,4	-	-	-	5082	-	-	-
630	CC	30,2	0,0283	2,8	2,2	-	-	-	39,6	-	-	-	6639	-	-	-
